Workshop photometry controller
Key Highlights
- Average measurement speed : 10 to 30s per light (light pre-heating and fitting replacement not considered)
- OS: Windows XP, 7 or 8®
- Integrated Data-Base
- Required space: 1.30m x 3,50m x 1.50m ( W x L x H )
- Precision: ± 2 %
- Temperature range: - 30 to + 70°C
- System power supply: 220 Vac
- Sensors strip (if provided) àWeight : 8 Kg / Dimension : 1m x 16cm x 12 cm (L x W x H)
Features
- Measures all light fittings.
- Beams of bi-directional fittings are measured automatically one after the other.
- The system is preferably installed in a dark room or a specific enclosure can be provided upon request.
- Or for runway and approach lights, using a dedicated cache, fittings can be measured in a normally lit office room.
- Reliable, precise and quick results in candela.
- Instant report edition
- No adjustment prior measurements
- Dedicated functions to support AGL maintenance
- Variable measurement speed

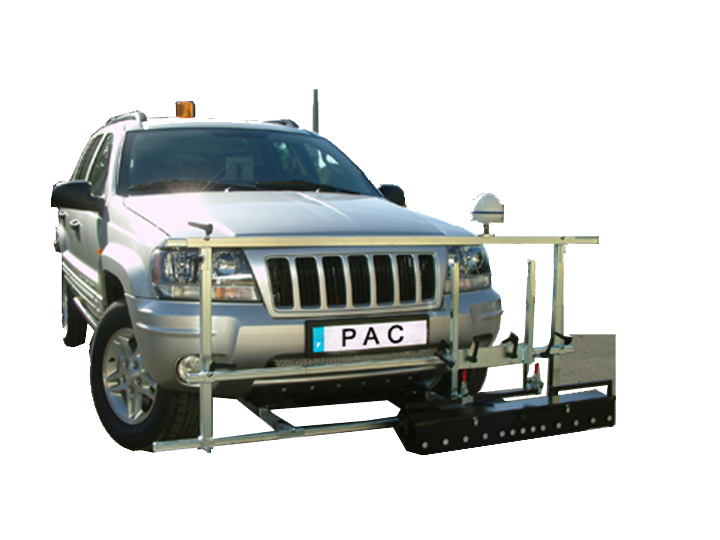

- Users of PAC system can share the same sensor strip for both in-field and workshop measurements.
- In option, the AGL fittings (from LED low power lights to 500W halogen fittings can be supplied with the FB Technology µCCR (dedicated for workshop use).
