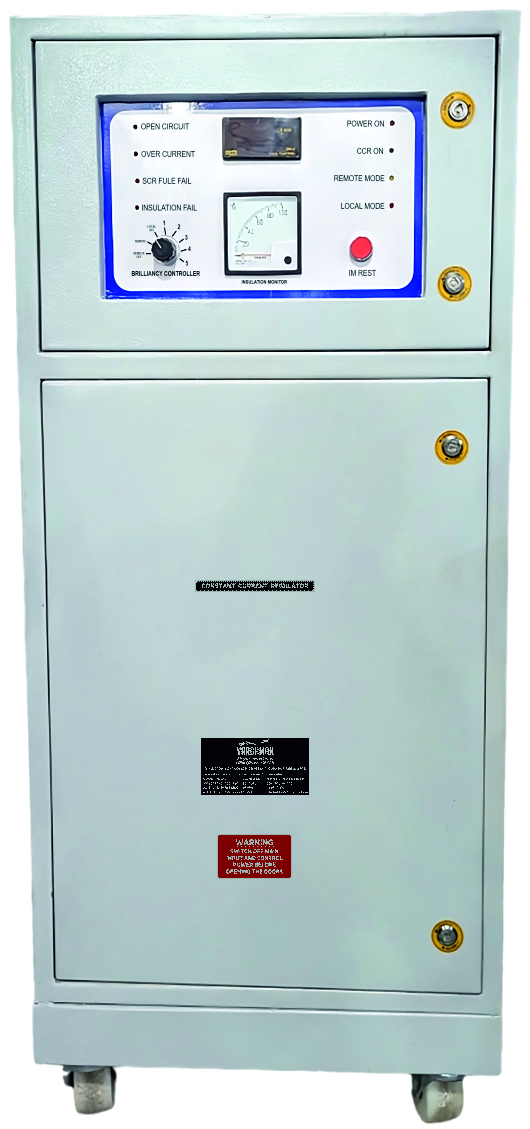

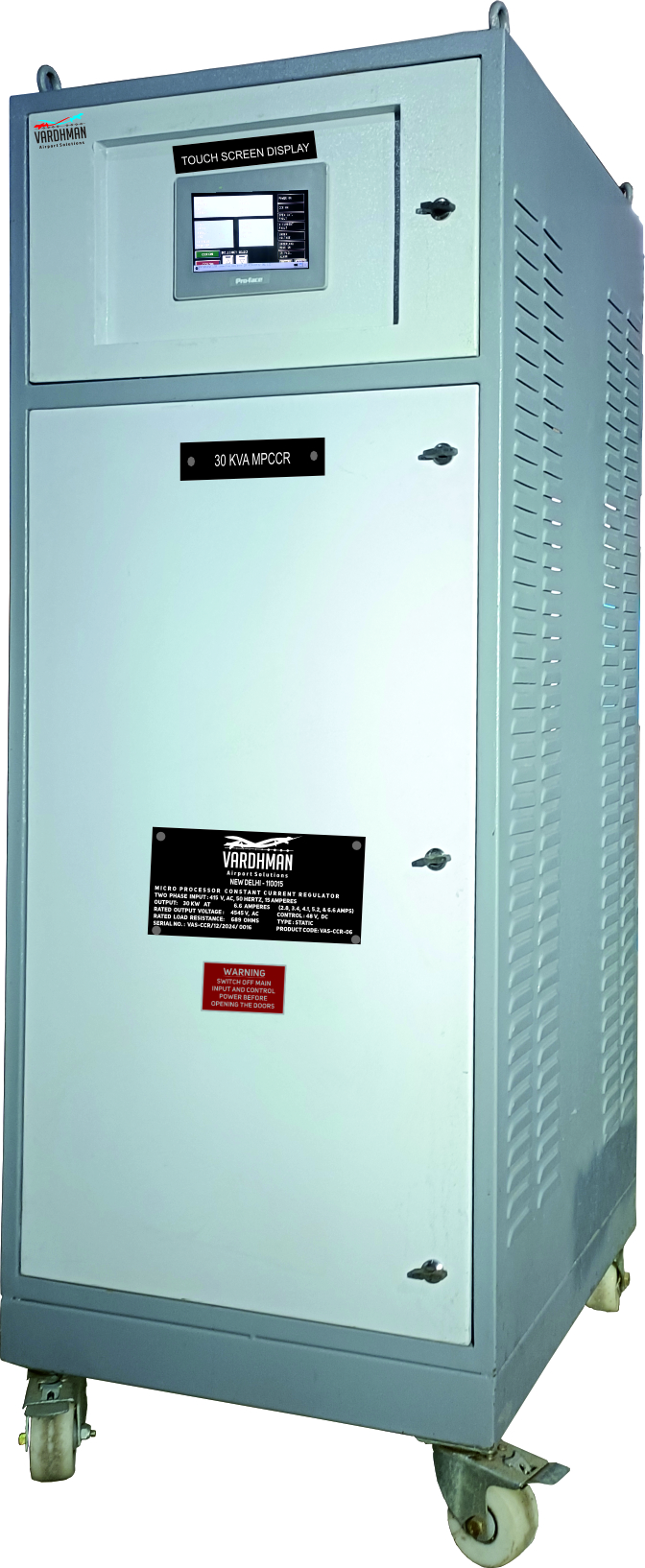

Micro Processor Constant Current Regulator
Designed specifically for the supply of airport lighting series circuits of varying intensities.
Key Highlights
- 2.5KW — VAS-MPCCR-2.5
- 4KW — VAS-MPCCR-04
- 7.5KW — VAS-MPCCR-7.5
- 10KW — VAS-MPCCR-10
- 15KW — VAS-MPCCR-15
- 20KW — VAS-MPCCR-20
- 30KW — VAS-MPCCR-30
Features
- Remote Control Operation.
- Nominal RMS output current (2.8A, 3.4A, 4.1A, 5.2A, 6.6A).
- Failure Indications for SCR Fail, Over Current, Open Circuit with alarm and failure indication for insulation resistance.
- Stable Output Current.
- Output Tapping Arrangements for 20, 25, 30 and 36KW.
- EEPROM and RAM for record of faults or error in previous operation.
- HMI Control and Display Unit.
- Parallel Communication.
- Serial Communication.
- Open Ckt 1 to 1.5A.
- Current Regulation Error.
- Input Power Loss.
- Over Current Protection.
- Earth fault protection.
- CCR Address Setting.
- CCR Date and Time setting.
- Series Circuit Cut Out Switch.
- Voltage Surge Suppressing / Lightning Protection.
- Degrade Mode Facility 30% SIT lamp fail or Open Ckt.
- Facility for monitoring for more than 10% VA drop.
- Monitoring Guide as per the requirement can feed in HMI.
- Dual over current protection.
- Remote control cable fault protection.
- Dual current meter (In HMI + ampere meter).
- HMI Control + manual brillancy selector control.
- Failsafe function in case of communication failure.
- Two configurable levels for lamp fault detection.
- Low Voltage Circuit Breaker.
- Low Voltage Indication.
Compliance with Standards
- ICAO: Aerodrome Design Manual 9157 Part 5, para 3.2.
- FAA: AC 150/5345-10H
- IEC 61820-3-2
Environmental Properties
- Relative Humidity: ≤95%
- Working Temperature: -40° to 55°C
- Altitude Range: 0 to 10,000 feet above Mean Sea Level
- Can withstand Salt laden atmosphere
Performance
- Efficiency: >90%
- Current Output: 5 Steps (2.8A, 3.4A, 4.1A, 5.2A, 6.6A); 7 steps optional
- Temperature Rise: ≤60°C
- Power Factor: >90%
- Output Current Stability: ±0.05% of Nominal Current
Electrical Supply
- 220–240V for below 7.5KW CCRs, 50/60 Hz
- 415V for above 10KW CCRs, 50/60 Hz
Dimensions
1400mm × 600mm × 600mm
