Primary Connector Kits (Resin Type)
To provide separable waterproof connections between all classes of armoured or un-armoured airfield lighting cable and polychloroprene encapsulated transformers. To make separable waterproof splice in all classes of armoured or un-armoured airfield lighting cable.
Type
Model CEG-52 – 5kV (or less), suitable for copper or brass tape screened and steel wire armour.
Compliance with Standard
FAA L-823, AC 150/5345-26D
Description

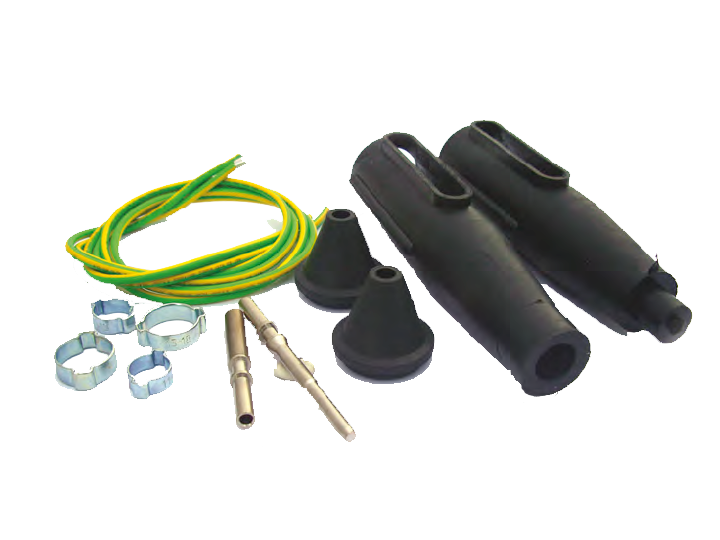

Each kit contains a plug housing and a receptacle housing, each with screen continuity provision for use with a copper or brass tape screen, crimp applied connector for screen continuity, and crimp applied electrical pin and socket contacts dimensionally identical to FAA specification L-823 contacts, plus incorporating a locking system that will withstand a static pull load of 155N (35 pounds) without separating. These kits mate with the moulded-on primary connectors of an isolating transformer. The use of these connectors provides a test point at every isolating transformer. One kit is required for each splice or transformer installation.
