LED Elevated Threshold Light
High-intensity, Uni-directional, Elevated Runway Approach,Threshold, Threshold Wingbar & Runway End lights used in SAPL & ICAO category I, II & III runways. Siderow Barrette used in ICAO category II & III runways.
Features
- Aluminium alloy body- light weight, corrosion-resistant & powder coated.
- Frangible coupling to ensure flight safety.
- Design for easy replacement of LED Module from the frontside without disturbing or opening the internal circuitry.
- LED's life is greater than 50,000 hours at 6.6A.
- 5-step constant current operation.
- Angle setting tool available as an option.
- Provision for vertical beam adjustment from 0° to 25°and horizontal beam adjustment at each side from 0° to 20°.
- Alignment is not required after replacement of LED Module.
- Smooth outer glass surface resists build up of dirt and is easy to clean.
- Low spares inventory for all types of light fittings. The only difference is LED module for different color.
Complience with standards
FAA : AC 150/5345-46 (L-862E)
Electrical supply
Suitable for use in 6.6A airfield lighting circuits.

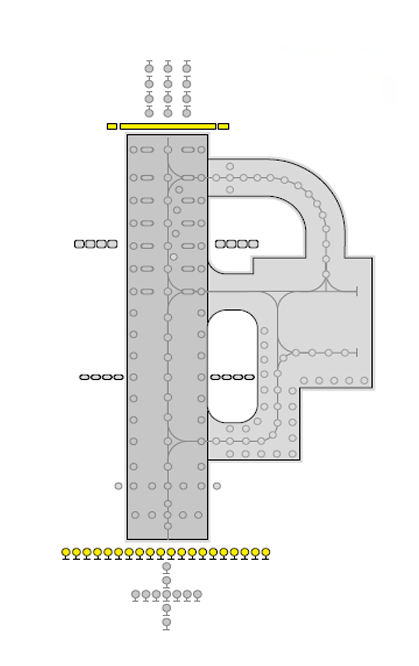

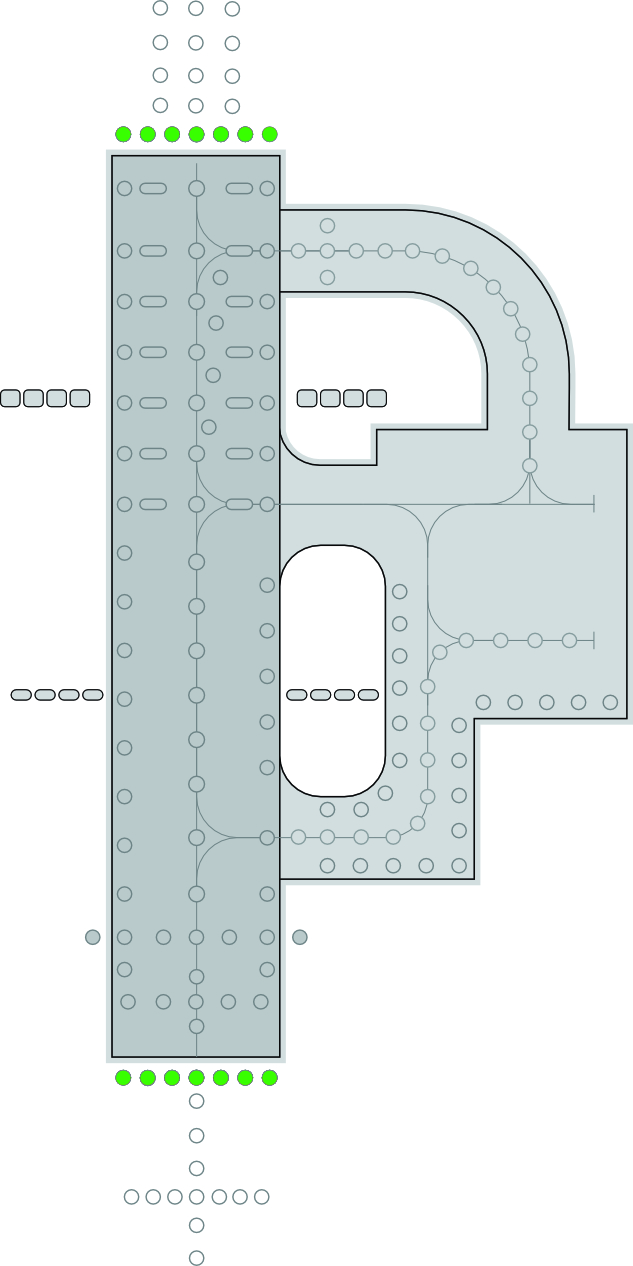

Fixture position on runway
