PAC Matrix
The PAC Matrix (Matrix of sensors for Photometric Airfield Calibration) is a portable photometry measurement system that can be used both in workshop and on-site.
Key Highlights
- In workshop, the PAC Matrix provides quick photometry compliance to ICAO by collecting light samples from the fitting beam – up to 17 samples can be taken in the ICAO main beam in order to compute the average value of the fitting. Measurement is carried out in one second per fitting.

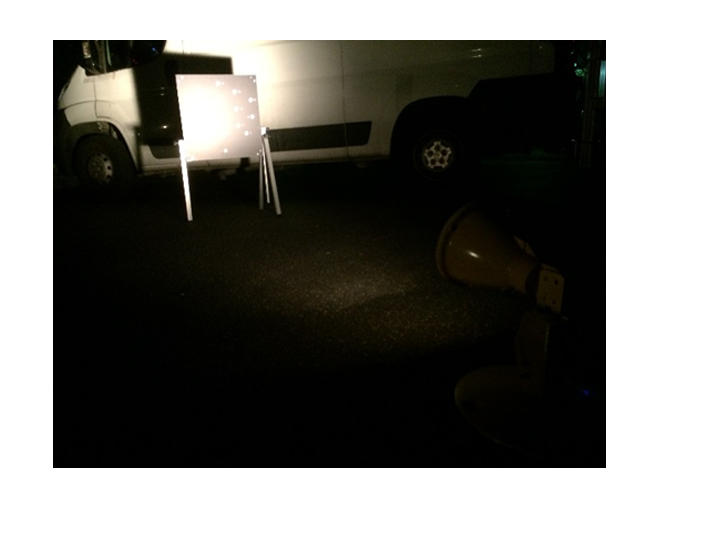

- On site, the operator carries this light-weight device and places it in front of the light beam to be measured: either by positioning it on the ground, and sliding up to the required height or for higher fittings – such as approach lights and high wing-bar lights, by simply carrying the PAC Matrix in front of the beam.
Measurement Process
- Position the PAC Matrix in front of the light beam.
- Select the type of fitting to be measured on the 10.1” tablette (touchscreen).
- Make sure it is horizontal (check bubble levels) and at the adequate distance (see tablette information).
- When ready, press on “Start acquisition” and click on the push-button.
- Result is provided instantly with the average value in candela and the status Pass/ Fail.
- If required, the pdf report of the fitting measurement can be displayed immediately.
PAC MATRIX for AGL fittings photometry
**PAC Matrix Individual light report** The PAC Matrix provides the following
- Name of the airport
- Date and time of measurement
- Type of facility and fitting identification number (if available)
- The GPS co-ordinates as provided by the 10” tablette
- The ICAO Average value in candela, the ICAO standard percentage of compliancy and the status Pass/ Fail.
- The display of measured values on the Matrix schematic and in a summary chart.
System performances
**All our products are compliant with ICAO, FAA, STAC and ENAC standards and recommendations.**
- Portable light-weight system (4.0kg – including rechargeable battery pack).
- Easy to use and to manipulate.
- Immediate display of results and immediate creation of pdf reports.
- Results include GPS co-ordinates of the fittings measured on-site.
- Using a database system to manage and record data used and collected during the measurement session.
- Data acquisition of light values in less than 1 second.
