Runway/Tower Miscellaneous Equiqments
Features

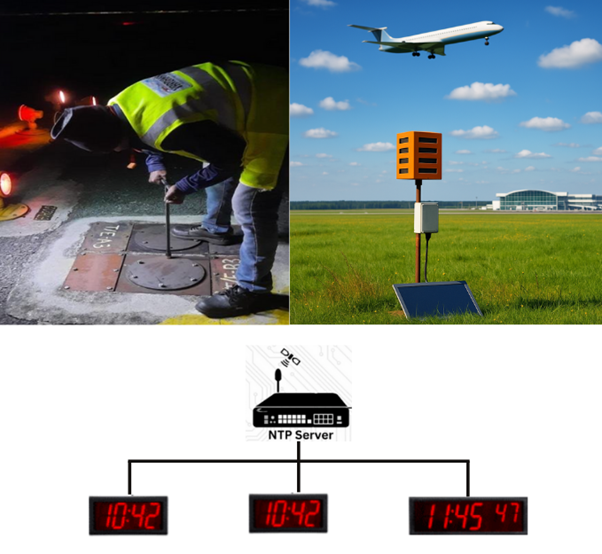

- Lightning Protection: Protection for all external structures, Over-voltage protection on all subsystem cabling, Protection at all antenna-transceiver interfaces
- Time Synchronization: All systems shall be synchronized centrally with a LAN-based Time Synchronization System to ensure uniform timekeeping across all units
- Fire Fighting Arrangements: Appropriate and sufficient fire extinguishing measures should be implemented to ensure the safety of all equipment and personnel
Equipment Specifications
Wind Direction Indicator
Highly visible ICAO-compliant wind indicator system with a rotating, elevated design and integrated lighting. Specs: Polyester PU fabric, ICAO Size 2 windsock, 4.5m frangible tower, 360° rotation, 4 LED lights, obstruction light, stainless steel base, aviation red & white paint, foundation template.
Landing T
Illuminated 'T' marker indicating wind and runway direction; clearly visible from the air at various distances and altitudes. Suitable for night and low-visibility operations.
Sonic Bird Scarer
Non-lethal UL/CE-compliant avian deterrent system using high-frequency sound. Specs: Coverage up to 30 acres, Power: 12VDC/Solar, Weight: 7–10 kg, Sound Pressure: 125dB, Frequency: 2–10kHz.

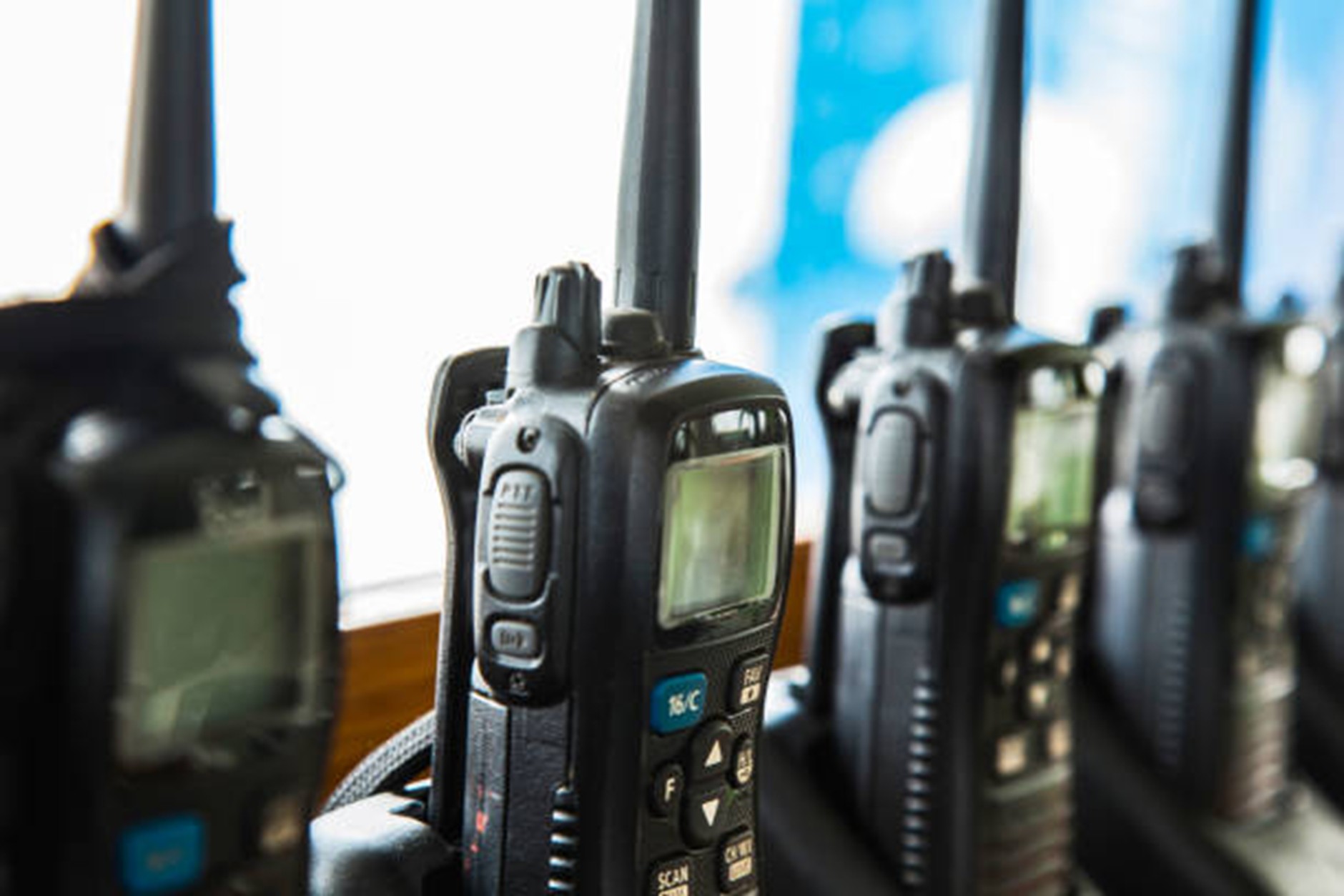

Ground Communication Handheld Sets
Reliable two-way VHF/UHF radios for airside personnel. Specs: Digital VHF/UHF, 446 MHz, 16 channels, ~10 km range, 8–72 hours battery life, easy to assemble. Motorola-type rugged design for field use.
Base Station ICOM Set
Compact ground-to-air communication unit for harsh field conditions. Specs: VHF 118–136.975 MHz, 25kHz/8.33kHz spacing, 6W output (customizable), 13.8/27.5V DC input, operational range -20°C to +60°C, lightweight and durable construction.
