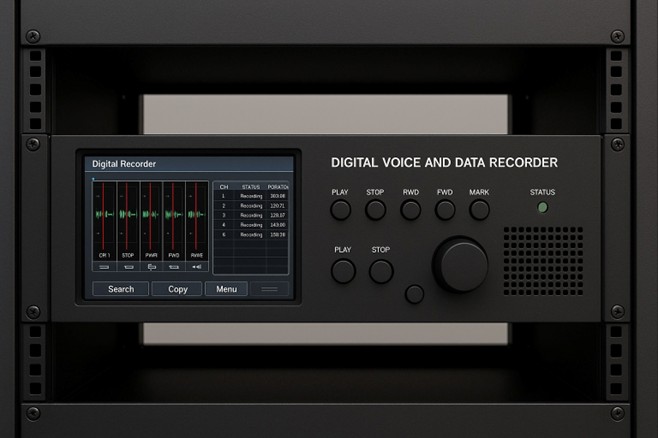

Digital Voice Recorder System
The Digital Recorder System shall be a complete network-based solution to record, playback and analyze all data exchanged in an ATC/ATM. System architecture is based on hardware and software components connected through a redundant LAN and must be Compliance with ICAO recommendations with features of Video, Audio and Data Acquisition and Sampling, Storage, Playback, Post-Analysis, System Management and automatic registration and security.
Key Highlights
- Network-based recording and analysis of voice, video, and data across ATC/ATM systems.
- ICAO-compliant system supports VoIP, analog, and protocol-based data acquisition.
- Secure, encrypted storage with redundancy via SSD, dual LAN, and NAS extensions.
- Graphical timeline reconstruction enables precise playback for incident analysis.
Features
- The Recorder system designed in accordance to the latest editions of ICAO standards
- Recorder system is based on distributed architecture, flexible, scalable, and redundant
- Safe data acquisition, no streaming and multi-format data acquisition capability
- Capability for multi-protocol data acquisition processing data packets based on different formats and protocols
- VoIP / SIP streams with at least 24 VoIP Channels and 16 Analog channels
- Maximum reliability with dual LAN connection in bonding, dual hot swappable Power Supply units
- Local storage using Solid State Disk (SSD)- 1 TB or better and extended through NAS
- Time Synchronization based on NTP
- Watchdog feature to monitor system health with SNMP alarms & events
- Integrated dashboard to monitor system health status and provide usage reports
- Secure (https) remote archiving to centralized archive
- Encrypted recordings
- Secure (https) web-based user interface for search & replay, incident reconstruction, reporting, export and system management
- Reconstruction features with graphical overview of recordings in timeline and audio mixing for 4 channels concurrently
- Export recordings and metadata in MP4/AVI for video, WAV/MP3 for audio and TXT for Keyboard & Mouse data
- Impound Module to export recordings and metadata securely (encrypted) to third party for investigation purposes
- Full Audit Trail to log User & System Manager activity
- Real-time and post-acquisition advanced data analysis, decoding data packets by protocol decoders
- User Friendly Graphical User Interface
