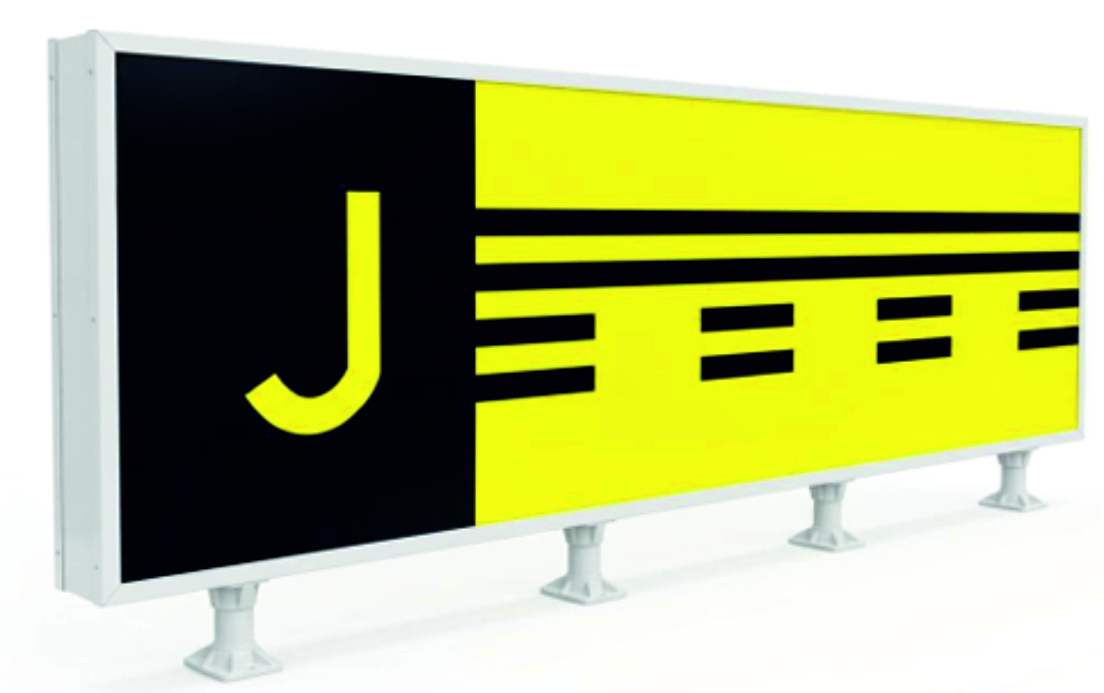

Airfield Guidance Double Side Sign Board (LED)
The VAS-DS-L is a double side display LED airfield guidance sign board used for providing guidance and information on runways and taxiways. Built with a light weight, corrosion resistant anodized aluminium alloy extruded profile and edge lit Osram LED modules, it is designed for use in harsh environments.
Key Highlights
- Double Side Display Sign Board with depth 140-145 mm
- Aluminium alloy extruded profile, light weight, corrosion resistant anodized, designed for use in harsh environments
- Equipped with edge lit Osram LED Modules (6500K colour temperature, life > 60,000 hrs)
- UV resistant Poly Carbonate sheet (4 mm) with self adhesive vinyl film (make 3M & Avery Dennison)
- Integrated electronic converter for Series circuit (2.8-6.6A input) or 230VAC input circuit
- Long-life LED lighting technology with low power consumption and power factor typically >0.90
- Signs can withstand jet blast and high wind pressure up to 260 knots
- Protection Degree IP66, working temperature -40°C to +55°C
- Easy installation and easy maintenance at low cost
- Any topology of CCRs designed in accordance with ICAO or FAA requirements can be used
- Compliance: ICAO Annex 14 Volume-I, ICAO Aerodrome Design Manual Doc 9157 Part 4 & 6, FAA AC 150/5345-44
